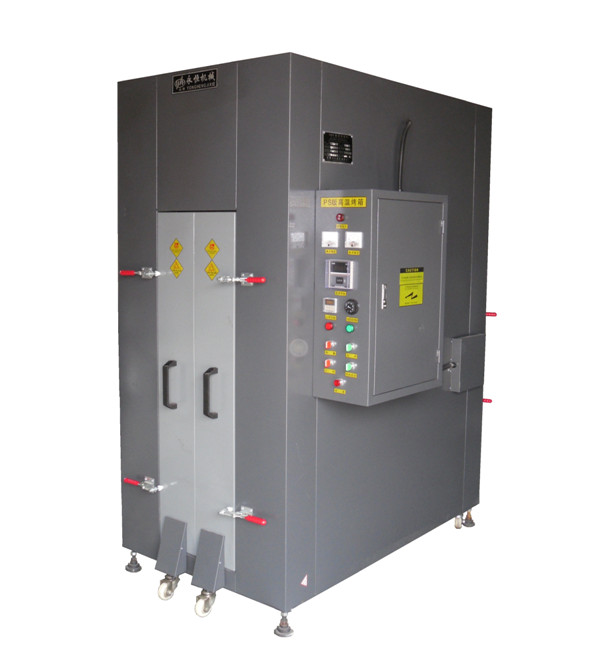

KYHL型立式高溫烤版機
KYHL Vertical High Temperature Plate Baking Machine

》產品介紹：
 KYHL型立式烤版機（高溫烤箱）是專門用于烘烤傳統PS版和CTP熱敏版，以增加版材的耐印量。經過烘烤的PS版印數可增加3-5倍。微電腦升溫控制，精確的溫控系統和優良的隔熱系統。

》性能特點：
?微電腦升溫控制，精確的溫控系統和優良的隔熱系統。
?全密閉式熱風循環，烤版溫度穩定，熱量分布均勻，避免版材變形。
?兩個獨立溫控系統避免單個故障而無法工作，保證作業進度。
?直立版雙抽版架，減少高溫外泄，節省電力消耗。
?外置風循環轉動裝置，延長使用壽命。
?精巧的夾版裝置，方便版材取放。
?自動計時報警裝置，免去人工計時誤差，確保烤版質量。

》規格型號及參數（特殊規格可定做）
Model and technical  specification (Special specifications can be customized):
（見表格）

Product Introduction:
KYHL Standing PS Plate whirl machine (High Temperature Oven) is special for roasting traditional PS plate and CTp tem-perature sensing plate, to improve the printing quantity of the material, the printing quantity of the roasted PS plate could increase 3-5 times. Microcomputer temperature control, precise temperature control system and excellent heat insulation system.

Performance Characteristics :
· Microcomputer temperature control, precise temperature control system and excellent heat insulation system.
·Fully closed hot air circulation, the temperature of the baking plate is stable, the heat distribution is uniform, and the plate deformation is avoided.
·Two separate temperature control system
 could avoid the stopping for the single fault，to ensure the progress of the work.
·Vertical plate double suction plate frame, reduce high temperature leakage, save power consumption.
·

Timing starting/shutting equipment, whole sealing machine case design, avoiding the hot gas running out.

·Fine plate locking equipment, the plate can be taken out conveniently.
·

Automatic alarm when the roasting is over, accurate temperature control, fine heat insulation system, plates do
not bend.
